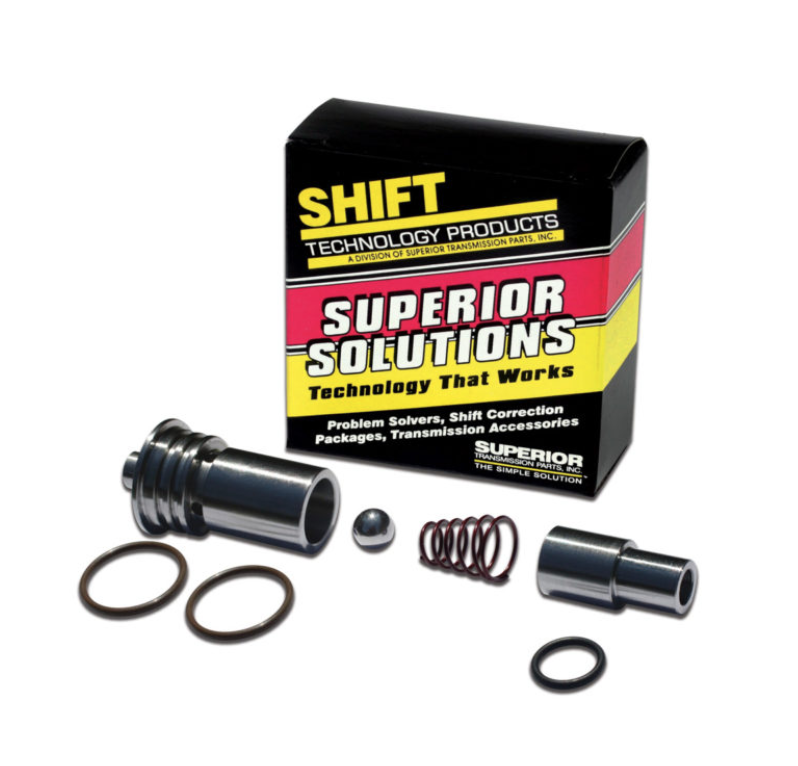

STL010 6L80/90 2014 & Up Sure-Cool System

Product requires the purchase of a Kit, Clutch Module or BROC.
$55.00
SKU: STL010
  • Full time cooler flow
  • Built in safety bypass
  • Immediate cooler fill
  • Immediate accurate fluid level check without warm-up cycle
  • Reduced average operating temperatures
  • Increased ATF life
  • Reduced risk of overheating
  • Reduced risk of planetary damage

Upgraded Parts If you have an early pump cover (stator) that does not utilize anti-rotational tabs on the sealing rings or an early 1-2-3-4/3-5-R clutch housing that does not have the matrix stamp you will need to install a factory upgraded pump cover and clutch housing.

Transmission Tuning Please understand that proper tuning of the TCM and ECM are mandatory. All 6L80/90’s are torque base shifted units. The torque signal is calculated thru the ECM. Therefore, transmission performance & longevity are directly dependent on the delivered torque signal that’s calculated in the ECM. If this is not done properly, you will experience premature transmission failure. We also do not recommend maxing out pressures or deleting torque management completely because it will cause seal failure and/or hard part breakage.

Flushing Cooler & Lines We cannot stress enough the importance of flushing the transmission cooler(s) and lines, even if they are new. We recommend using a Hot Flush Machine Flush Machine or something comparable.

Auxiliary Cooler You need to install a stacked plate auxiliary transmission cooler (not a tube & fin style cooler) rated for 25,000 GVW. The ideal operating temperature for this transmission is 180°or less. These transmissions have a tendency to run very hot – the cooler will lower operating temperature and recovery time which in turn will extend the life of your transmission.
