6L80 Performance Transmission, 3-5-R Clutch Kit

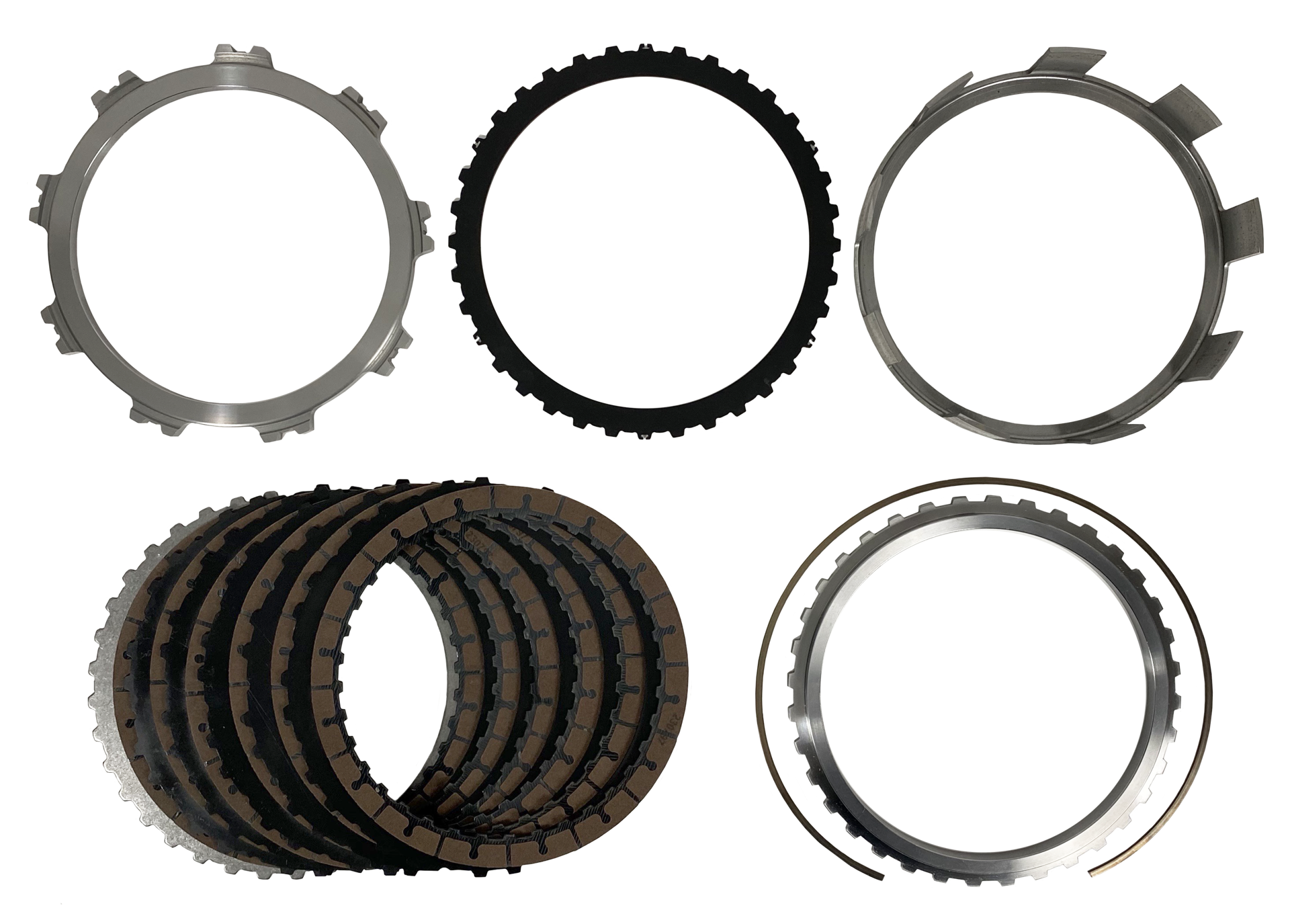

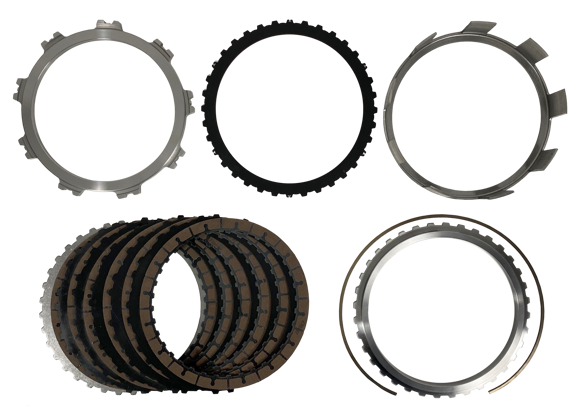

Picture for representation purposes only - actual contents may vary as we continue to develop our product.

• CDT35RL3-4/80 (3-5-R CLUTCH KIT)
  6 G3® Keyhole Clutches
  6 Kolene® Steels (varying thicknesses)
  1 Steel Plate
  1 Apply Ring
  1 Backing Plate
  1 Snap Ring
  1 1-2-3-4 Modified Backing Plate



  CDT35RL3-4/80-P offers 50% more clutch apply area than stock. G3® friction material is formulated to achieve minimal wear & maximize heat resistance. Keyhole Clutch design allows a significant amount of ATF to escape out of the O/D and I/D channels to improve clutch engagement. The pooling of ATF in the slot and hole separates the friction and steels when the clutch is disengaged reducing parasitic drag and heat build-up. Kolene® Steels provide a surface treatment the enhances wear & fatigue resistance.
