6L80 Performance Clutch Module - Level 2
Includes all 5 Clutch Kits | Detailed Instructions Included | FREE UPS Ground to the contiguous United States (lower 48)
Kit is designed with stock dimension 36-tooth 4-5-6 clutch plates and will work with the OE intermediate 4-5-6 clutch hub. The 4-5-6 clutch pack provides 17% more surface area than a stock clutch set up. The 3-5-R clutch pack offers 25% more clutch area than stock.
In stock items ship within 1-2 business days.

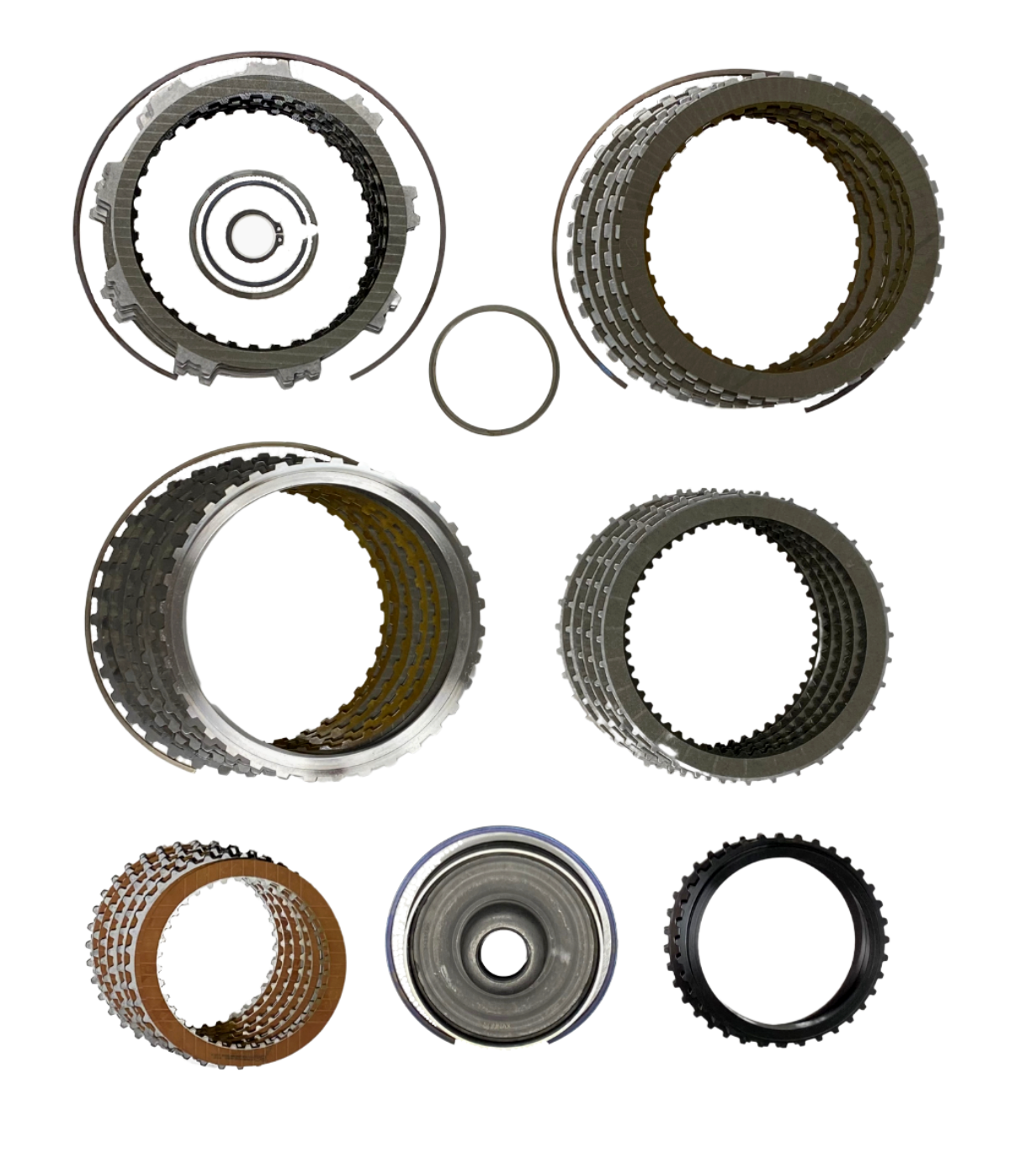

Picture for representation purposes only. Actual contents may vary as we continue to develop our products.
CDT456L2/80-CM (4-5-6 CLUTCH MODULE)
7 Borg Warner® Clutches
6 Lindered Steel Plates
1 Apply Plate
1 Backing Plate
1 Snap Ring
2 Bonded Pistons
CDT456L2/80-CM offers 17% more clutch apply area than stock. This clutch module works with the OE intermediate 4-5-6 clutch hub. Lindered is a chemical and heat treatment process that hardens the steel, which results in less wear.
CDT35RL2/80-CM (3-5-R CLUTCH MODULE)
5 Borg Warner® High Energy Clutches
6 Kolene® Steels (varying thickness)
1 Backing Plate
1 Snap Ring
CDT35RL2/80-CM offers 25% more clutch apply area than stock. High Energy material maintains consistent frictional behavior and tolerates extreme thermal stress applications. Kolene steels provide a surface treatment that enhances wear & fatigue resistance.
CDT26L2/80-CM (2-6 CLUTCH MODULE)
5 Borg Warner® Clutches
5 Steels
1 Snap Ring
CDT1234L2/80-CM (1-2-3-4 CLUTCH MODULE)
5 High Energy® Clutches
5 Steels
1 Snap Ring
1 Spiral Snap Ring
1 Snap Ring Kit
High Energy material maintains consistent frictional behavior and tolerates extreme thermal stress applications.
CDTLRL2/80-CM (LOW-REVERSE CLUTCH MODULE)
5 High Energy® Clutches
5 Steels
High Energy material maintains consistent frictional behavior and tolerates extreme thermal stress applications.
